Sheet Grade Resins · Orthophthalic
Sheet Grade Yellow Resin
Pre-pigmented yellow resin for consistent FRP sheet manufacturing.
- Viscosity
- 280 cPs
- Gel Time
- 6.5 Minutes
Product family
Sheet Grade Resin — FRP Roofing, Cladding & Panels
Sheet grade describes a resin matched to continuous lamination and panel work rather than general moulding: reactivity tuned to line speed, wet-out fast enough for chopped strand mat as it passes, and colour or clarity controlled at the factory instead of on the shop floor. Samrat Poly Resins publishes four sheet grades from Doraha, Punjab, and the choice between them is decided by what the finished sheet has to do about light and sunlight.
Sheet grade is a market term rather than a standardised designation. For the finished product, IS 12866 is the Indian standard covering translucent glass-reinforced polyester sheet, and it sets glass content, light transmission class and ageing criteria that belong to the tested sheet, not to a drum of resin.
4Published
Products
Products
4 products
Published sheet grades
Sheet Grade Resins · Orthophthalic
Roof Light Sheet Grade Resin
Water-white polyester resin for published roof-light and skylight sheet applications.
- Viscosity
- 280 cPs
- Gel Time
- 6.5 Minutes
Sheet Grade Resins · Orthophthalic

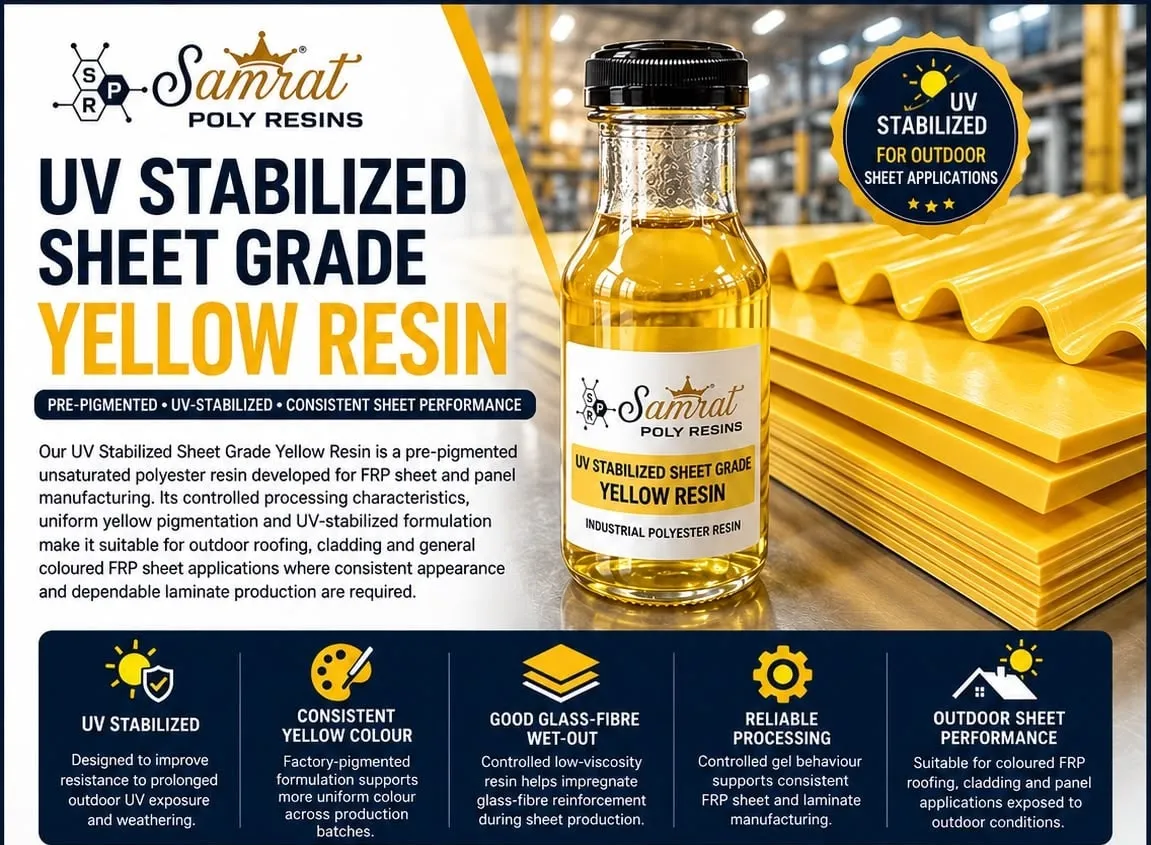

UV Stabilized Sheet Grade Yellow Resin
Pre-pigmented yellow polyester resin with a UV-stabilised formulation, for outdoor FRP sheet and panel work.
- Viscosity
- 280 cPs at 25 °C
- Gel Time
- 6.5 minutes at 25 °C
Price on RequestTDS
UV-stabilized clear orthophthalic resin for roof-light sheets exposed to sunlight.
- Viscosity
- 200–400 cPs
- Gel Time
- 6.5–10 minutes
Price on RequestTDS
Sheet Grade Resins compared
Typical values from each grade's published data sheet, for shortlisting. They are not guaranteed properties of a finished part.
| Grade | Viscosity | Gel time | Data sheet |
|---|---|---|---|
| Sheet Grade Yellow ResinSPR 201 SGY | 280 cPs | 6.5 Minutes | TDS |
| Roof Light Sheet Grade ResinSPR 201 RL | 280 cPs | 6.5 Minutes | TDS |
| UV Stabilized Sheet Grade Yellow Resin | 280 cPs at 25 °C | 6.5 minutes at 25 °C | TDS |
| UV-Stabilized Roof Light ResinSPR 201 RL (UV) | 200–400 cPs | 6.5–10 minutes | TDS |
Choosing between them
Which sheet grade does your panel need?
Light through the sheet
Roof Light Sheet Grade Resin
A water-white grade for translucent roof-light panels, skylight sheets and greenhouse roofing, where the product is sold on how much daylight it passes.
View Roof Light Sheet Grade ResinLight through the sheet, outdoors
UV-Stabilized Roof Light Resin
SPR 201 RL (UV): a clear, UV-stabilized orthophthalic roof-light grade for roof-light sheets and translucent roofing panels exposed to sunlight. Clear, not pre-pigmented.
View UV-Stabilized Roof Light ResinColoured sheet, general
Sheet Grade Yellow Resin
Pre-pigmented yellow, with the colour dispersed at the factory rather than added at the laminating stage. The general sheet and panel route where the finished part is not facing years of direct sunlight.
View Sheet Grade Yellow ResinColoured sheet, outdoors
UV Stabilized Sheet Grade Yellow Resin
The same pre-pigmented yellow route with a light-stabiliser package, for roofing, cladding and coloured sheet that lives outdoors. It is UV stabilised, not UV curing: it cures conventionally with MEKP and cobalt, and no lamp is involved.
View UV Stabilized Sheet Grade Yellow ResinTwo things no resin supplier can honestly promise for a sheet. Nobody can give a service life in years without a defined exposure site, laminate construction and a stated failure criterion, and accelerated weathering hours do not convert into calendar years — acceleration factors have to be measured, not calculated. Bulk stabilisation also does not replace a surfacing veil or a protective film: they defend against different mechanisms, and the film does not protect cut edges or fastener holes.
Guides
Read before you specify
What Is Sheet Grade Yellow Resin?Understand the published Sheet Grade Yellow Resin role for FRP sheet and panel manufacturing, and how it differs from general-purpose and roof-light resin routes.What Is UV Stabilised Sheet Grade Resin?A pre-pigmented polyester resin with a light-stabiliser package, made for FRP sheet and panel work that lives outdoors. What the stabilisers actually do, why the pigment matters, what the grade cannot promise and how to specify it.UV Stabilised Resin vs UV Curing Resin: Two Opposite ProductsBoth are called UV resin and they have opposite relationships to light. One is cured by a lamp; the other is built to survive sunlight. If you searched for UV resin, this page tells you in thirty seconds which one you actually need.UV Stabilised vs Standard Sheet Grade Yellow ResinSamrat publishes two yellow sheet grades and they are not interchangeable. What the stabiliser package adds, when the standard grade is the correct and cheaper choice, and how to decide without guessing from the name.How Sunlight Degrades FRP Sheets: Yellowing, Chalking, Fibre BloomPhoto-oxidation explained properly: why the ester and the styrene crosslinks are the weak points, why damage stays in a thin surface layer, why a sheet can get stiffer while getting worse, and why fibre bloom is a runaway loop rather than a cosmetic endpoint.Roof Light Sheet Grade Resin: Translucent FRP Roofing GuideThe published water-white polyester route for translucent FRP roof-light panels and skylight sheets: grade data, applications, how it differs from GP Clear and Sheet Grade Yellow, and what to send with a quotation request.How to Choose Resin for FRP Sheet and Panel ManufacturingA buyer-selection guide for separating an FRP sheet or panel requirement into resin role, supplied appearance, reinforcement, surface finish and documentation checks.
Ordering sheet grade resins: questions buyers ask
Choose the grade, send the quantity and delivery location, and we reply with a quotation. Call +91 74638 81652, message us on WhatsApp +91 74638 81005 or email info@samratpolyresins.in.
4 published grades: Sheet Grade Yellow Resin, Roof Light Sheet Grade Resin, UV Stabilized Sheet Grade Yellow Resin and UV-Stabilized Roof Light Resin. Each is manufactured at Doraha, Ludhiana, Punjab.
Sheet Grade Yellow Resin: 225 kg Drum; Roof Light Sheet Grade Resin: 225 kg Drum; UV Stabilized Sheet Grade Yellow Resin: 225 kg industrial drum. For UV-Stabilized Roof Light Resin, packaging is confirmed with the quotation.
Prices are quoted on request, for your grade, monthly quantity and delivery location. Send those details on WhatsApp (+91 74638 81005), call +91 74638 81652 or email info@samratpolyresins.in. How ordering works.
Yes. Sheet Grade Yellow Resin, Roof Light Sheet Grade Resin, UV Stabilized Sheet Grade Yellow Resin and UV-Stabilized Roof Light Resin each link a technical data sheet (PDF) with the published specification.
Yes. Supply covers Punjab, Haryana, Delhi, Uttar Pradesh, West Bengal, Bihar, Jharkhand, Odisha, Assam and Andhra Pradesh, with exports to Nepal, Bangladesh, Ethiopia, Cameroon and South Africa.
Traders and distributors can send a dealer enquiry with their firm, location and expected monthly volume on the dealer and distributor enquiries page.
Enquiry
Request a quote for sheet grade resins
Tell us the finished product, the service condition and the quantity, and the right grade can be matched to it. Samrat Poly Resins manufactures at Doraha, Punjab.
